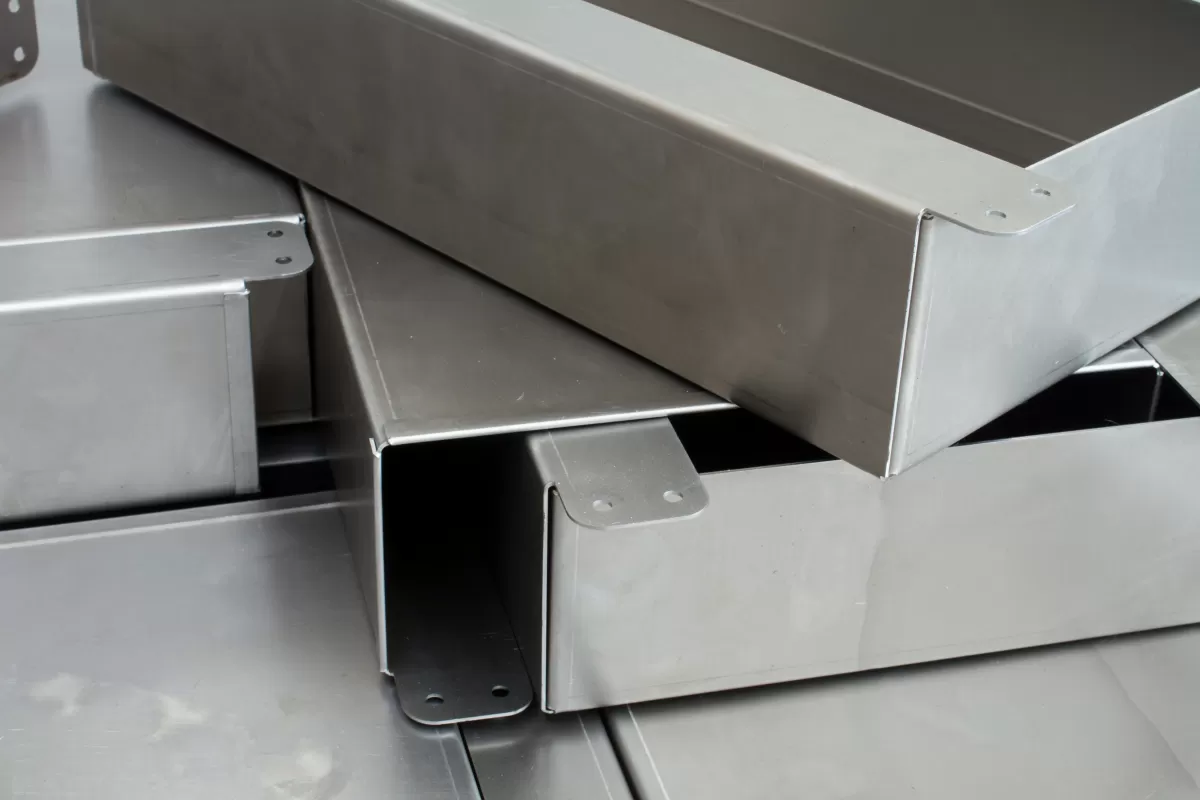

What Are Sheet Metal Brackets
Sheet metal brackets are sturdy components fabricated from thin metal sheets, designed to support, mount, or connect various parts within a structure or system. Their primary role is to provide reliable structural support, ensuring stability and alignment for machinery, equipment, or architectural elements.
These brackets are widely used across multiple industries, including:
- Structural support in construction and framing
- Machinery assemblies for industrial equipment
- HVAC systems to mount ductwork and ventilation units securely
Common materials for sheet metal brackets include:
- Steel: Known for its strength and durability, ideal for heavy-duty applications.
- Aluminum: Lightweight and corrosion-resistant, perfect for reducing overall weight without sacrificing strength.
- Stainless steel: Offers excellent corrosion resistance and longevity, especially in harsh or outdoor environments.
Each material brings unique benefits, allowing designers to choose the best fit based on load requirements, environmental conditions, and cost considerations.
Benefits of Custom Sheet Metal Brackets
Custom sheet metal brackets offer a number of advantages that help your project run smoothly and perform reliably.
-
Precision and Fit: With CNC machining, every bracket is made to your exact specifications. This ensures a perfect fit, reducing installation time and preventing issues down the line.
-
Durability: Using high-quality materials like steel, aluminum, or stainless steel means your brackets will stand up to wear, corrosion, and tough conditions for the long haul.
-
Versatility: Custom brackets can be designed for any industry or application—whether it’s machinery, HVAC, or structural support—giving you the flexibility to meet unique demands.
-
Cost-Effectiveness: CNC fabrication optimizes material use and minimizes waste, which lowers overall production costs without sacrificing quality.
Choosing custom sheet metal brackets means getting a reliable, tailored solution that supports your specific needs while keeping your budget in check.
Design Guidelines for Sheet Metal Brackets
When designing sheet metal brackets, it’s important to keep a few key points in mind to ensure strength, durability, and ease of fabrication.
Material selection
Pick materials based on the bracket’s purpose. Steel is great for strength and heavy loads, aluminum offers lightweight and corrosion resistance, while stainless steel excels in harsh environments where rust is a concern.
Bend radius and flange length
Always follow the minimum bend radius, which should be at least equal to the material thickness. This helps prevent cracking and ensures clean bends. Flange lengths need to be long enough to provide proper support without adding unnecessary bulk.
Hole and notch placement
Position holes and notches carefully to avoid weakening the bracket. Maintain enough spacing between these features so the structure holds up under stress.
Corner fillets
Use rounded corners instead of sharp edges. Rounded fillets not only make brackets safer to handle but also reduce stress points, making fabrication smoother.
Offsets and bends
Keep bends and offsets aligned, making sure parallel planes stay consistent. Stick to minimum distance guidelines to avoid warping and maintain the bracket’s shape during both fabrication and use.
Following these sheet metal design guidelines helps ensure your brackets perform reliably and fit perfectly in your project.
HYCNC’s Custom Sheet Metal Bracket Fabrication Process
At HYCNC, we use advanced CNC machining technology to deliver precise custom sheet metal brackets. Our capabilities include laser cutting for exact shapes and precision sheet metal bending to create strong, accurate bends every time.
Here’s how our process works:
- Design Consultation: We start by understanding your exact needs and reviewing your drawings or ideas.
- Prototyping: Next, we create a sample bracket to make sure everything fits and functions as planned.
- Production: Once approved, we move to full-scale fabrication using state-of-the-art CNC metal fabrication equipment.
- Quality Control: Every bracket goes through a thorough inspection to ensure durability, precision, and OEM compatibility.
Our focus is on quick turnaround times and high-precision results, so you get reliable brackets that fit perfectly and arrive fast. For example, we recently supplied custom sheet metal brackets for an automotive client, meeting tight specs and delivery deadlines to keep their production line moving smoothly.
How to Choose the Right Sheet Metal Bracket for Your Project
When picking the right sheet metal bracket, start by looking at your project’s needs. Think about how much weight the bracket must hold and the conditions it will face—like moisture, temperature, or exposure to chemicals. These factors help decide the best material and design.
Next, weigh the benefits of custom versus standard brackets. Standard brackets are great for quick, off-the-shelf solutions. But if you need perfect fit, unique shapes, or higher strength, custom sheet metal brackets made with CNC machining are the way to go. Custom parts ensure your bracket matches your exact specs and can handle the specific demands of your application.
Finally, working with a skilled fabricator like HYCNC makes a big difference. We focus on precision and tight tolerances to make sure each bracket performs well and fits perfectly every time. Our experience in CNC metal fabrication helps avoid costly mistakes and speeds up your project.
Why Choose HYCNC for Sheet Metal Brackets
At HYCNC, we combine expert CNC machining skills with advanced technology to deliver top-quality custom sheet metal brackets. Our team is committed to precision and durability, ensuring every bracket meets your exact specifications. With state-of-the-art equipment, including laser cutting and precision bending, we guarantee consistent results every time.
We know time is crucial, so we offer fast turnaround times without compromising quality. Our competitive pricing makes custom fabrication affordable, and being locally based means you get responsive service and easy communication right here in the U.S.
One of our clients in the automotive industry praised us for delivering highly precise mounting brackets on a tight schedule—helping them keep production on track and reduce waste.
Ready to get your project moving? Contact us today for a free quote on custom sheet metal brackets and experience hassle-free CNC metal fabrication with HYCNC.
Learn more about our sheet metal fabrication services and metal bending capabilities.
FAQs About Sheet Metal Brackets
What materials are best for sheet metal brackets
Steel, aluminum, and stainless steel are the most common choices. Steel offers strong structural support, aluminum is lightweight and corrosion-resistant, and stainless steel provides excellent durability and rust resistance.
How long does it take to fabricate custom brackets
At HYCNC, turnaround typically ranges from a few days to two weeks, depending on the complexity and quantity of your order. We prioritize fast delivery without sacrificing quality.
Can HYCNC produce brackets based on my drawings
Yes, we specialize in CNC metal fabrication from your provided designs. Just send us your drawings, and we’ll handle everything from prototyping to final production.
What industries use sheet metal brackets
Sheet metal brackets are widely used in automotive, HVAC, machinery, construction, and industrial equipment. Their versatility makes them essential for structural support and mounting needs across various sectors.
How to ensure bracket design is structurally sound
Use proper material selection, follow bend radius guidelines, place holes carefully to avoid weakening, and include corner fillets. Consulting with fabricators like HYCNC helps guarantee your design meets strength and durability requirements.
