What is Wire EDM
Wire EDM, or Wire Electrical Discharge Machining, is a precision manufacturing process that uses a thin, electrically charged wire to cut through conductive materials. Instead of physically grinding or cutting, Wire EDM relies on controlled electrical sparks that erode the metal without direct contact, making it ideal for delicate or complex parts.
How Wire EDM Works
The process involves a thin wire acting as an electrode, continuously fed through the workpiece submerged in a dielectric fluid (usually deionized water). The wire generates rapid electrical sparks between itself and the metal, melting and vaporizing tiny sections of the material. The dielectric fluid cools the workpiece and flushes away the debris, ensuring a clean and precise cut.
Key Components of a Wire EDM Machine
- Wire Electrode: Usually made of brass or copper, this fine wire cuts the workpiece with pinpoint accuracy.
- Dielectric Fluid System: Maintains cooling and debris removal during cutting.
- CNC Controls: Computer Numerical Control systems automate the cutting process, allowing for highly intricate designs and repeatable precision.
- Automation Features: Modern Wire EDM machines include automatic wire threading, tension control, and features like Automatic Slug Management to increase efficiency and reduce manual intervention.
Wire EDM technology combines electrical discharge machining principles with CNC automation, enabling manufacturers to create extremely precise and complex parts in hard metals with superior surface finishes.

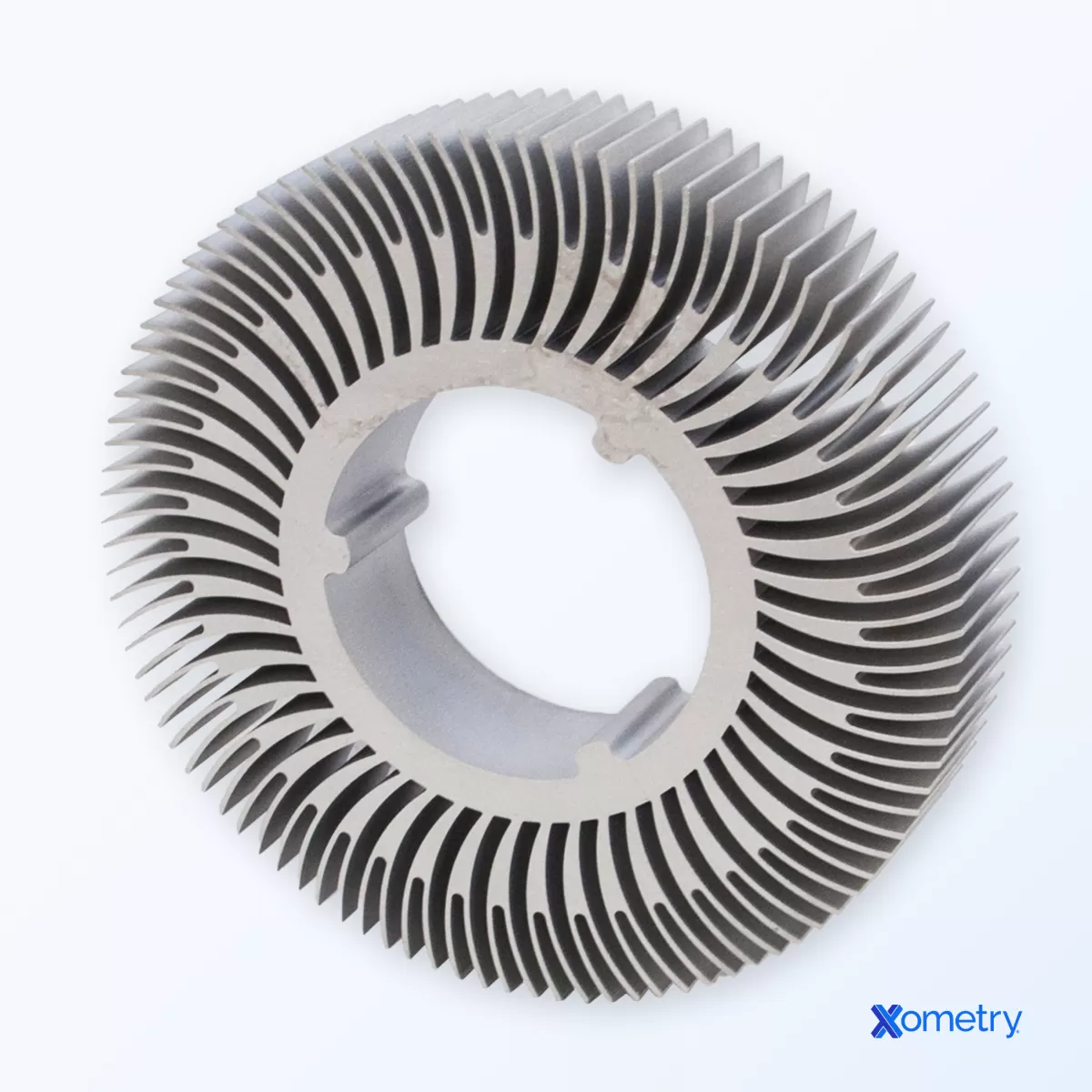

Benefits of Wire EDM Machining
Wire EDM offers unmatched precision, reaching sub-micron accuracy that’s perfect for creating intricate parts where every detail counts. This makes it a top choice for industries demanding exactness.
Its versatility shines when cutting complex shapes in tough materials like titanium and hardened steel. Wire EDM handles what many other machining methods struggle with, opening up new possibilities for design and manufacturing.
Surface finish is another strong suit. Wire EDM produces smooth, high-quality finishes ideal for aerospace, medical, and automotive parts that require both performance and aesthetics.
Automation also plays a big role. Features like Automatic Slug Management (ASM) streamline the process, reduce manual work, and improve consistency—helping you get faster, reliable results every time.
Applications of Wire EDM in Modern Manufacturing
Wire EDM is widely used across industries that demand precision and complex designs. Key sectors include aerospace, medical, automotive, and tool and die making. These fields rely on the unique ability of wire EDM machining to handle tough materials and intricate shapes.
Common uses cover:
- Precision molds for plastic and metal parts
- Gears with complex tooth profiles
- Turbine blades used in aircraft and power generation
- Micro-components essential for medical devices and electronics
One example is HYCNC delivering a complex aerospace part using wire EDM. The project involved cutting hard, heat-resistant alloys with tight tolerances, ensuring safety and performance. This shows how wire cut EDM, combined with our CNC wire EDM services, can tackle even the most challenging parts while maintaining excellent surface finishing EDM quality.
Why Choose HYCNC for Wire EDM Services
At HYCNC, we bring years of hands-on experience in CNC machining and wire EDM to every project. Our team knows how to handle complex jobs with precision, delivering parts that meet tight tolerances every time.
We use state-of-the-art wire EDM machines equipped with the latest automation features. This advanced technology not only improves accuracy but also speeds up production, so you get high-quality results faster.
Every project is unique, and we customize our wire EDM services to fit your specific needs. Whether you need intricate shapes or special materials, we tailor our process to ensure the best outcome.
Quality is key at HYCNC. Our ISO-certified processes guarantee consistent precision and reliability across all jobs, giving you peace of mind that your parts will perform exactly as expected.
From the first design consultation through final delivery, our customer support team stays engaged, making sure your project runs smoothly and meets deadlines. We’re here to help you every step of the way.
Wire EDM vs Other Machining Methods
When choosing the right machining method, it’s important to understand how Wire EDM stacks up against CNC milling, turning, and laser cutting.
Comparison Overview
-
Speed
CNC milling and turning often work faster on simpler parts. Laser cutting is quick for thin materials. Wire EDM is generally slower but excels in detailed work.
-
Precision
Wire EDM offers unmatched precision with sub-micron accuracy, perfect for intricate shapes. CNC milling and turning are precise but usually not to the same fine detail. Laser cutting is less precise on thicker or tougher materials.
-
Material Compatibility
Wire EDM only works on conductive materials like hardened steel and titanium. Milling and turning can handle a wider range of materials, including non-metallics. Laser cutting works well on thin metals and some plastics but struggles with very hard metals or thicker parts.
When to Choose Wire EDM
- You need intricate designs that other methods can’t achieve.
- Working with hard or heat-sensitive materials where cutting without distortion matters.
- When a superior surface finish is important without extra polishing.
- To cut complex shapes or fine details that CNC milling or turning can’t reach.
Wire EDM vs CNC Milling vs Laser Cutting Table
| Feature | Wire EDM | CNC Milling | Laser Cutting |
|---|---|---|---|
| Precision | Extremely high (sub-micron) | High, but limited on fine details | Moderate, best on thin materials |
| Material | Conductive metals only | Metals & plastics | Thin metals & some plastics |
| Speed | Slower, detailed cuts | Faster, bulk material removal | Fastest for thin profiles |
| Complex shapes | Excellent | Good, limited by tool access | Good but limited depth |
| Heat-affected zone | Minimal | Moderate, can affect material | High risk of heat distortion |
| Surface Finish | Superior, minimal post-process | Requires finishing | Varies, sometimes rough edges |
Choosing the right method depends on your part’s complexity, material, and finish requirements. For precision and tough materials, Wire EDM often comes out on top.
How HYCNC Optimizes Your Wire EDM Projects
At HYCNC, we streamline your wire EDM projects from start to finish. Here’s how we make it easy and efficient:
Full Process Support
- We handle everything from your initial design to the final product.
- Our CAD and CAM integration ensures your project moves smoothly through every stage.
- Need prototypes? We provide fast, accurate samples so you can check before full production.
Cost Efficiency
- We offer competitive pricing without cutting corners on quality.
- By optimizing setups and reducing waste, we keep your costs low.
Fast Turnaround
- Whether you have a high-volume order or a rush job, we deliver on time.
- Our advanced wire EDM machines and experienced team keep projects moving quickly without sacrificing precision.
With HYCNC, your wire EDM project is in good hands — efficient, accurate, and budget-friendly.
Getting Started with HYCNC Wire EDM Services
Requesting a quote with HYCNC is quick and easy. Just reach out through our website or give us a call to start the conversation. We’ll guide you step-by-step so you know exactly what to expect.
Our consultation process includes a free design review where our experts offer technical advice tailored to your project. This helps ensure your wire EDM machining meets your exact specifications before production begins.
Ready to get started? Contact HYCNC today for a quote or to discuss your wire EDM needs. We’re here to help bring your precision CNC machining projects to life with reliable, expert service.
